Internal Multi-fold Unit FD3000
Replacement and Adjustment
Sensors
Junction Gate HP Sensor
Remove the front right cover. (
Front Right Cover
)

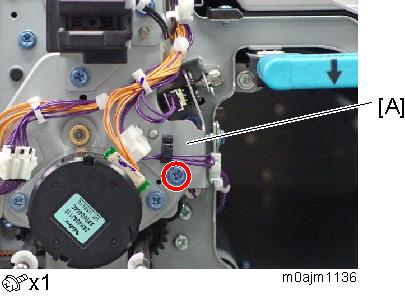

Remove the junction gate HP sensor bracket [A].

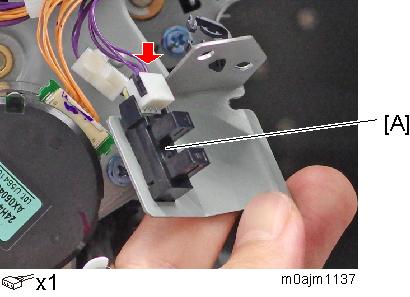

Remove the junction gate HP sensor [A].
