Internal Multi-fold Unit FD3000
Replacement and Adjustment
Exterior Covers
Front Left Cover
Open the door [A].

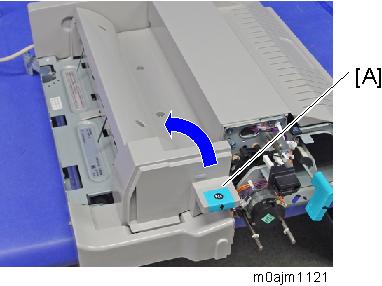

Open the exit unit [A].

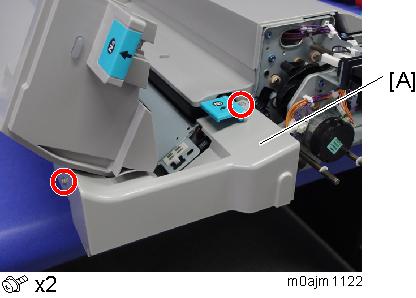

Remove the front left cover [A].
