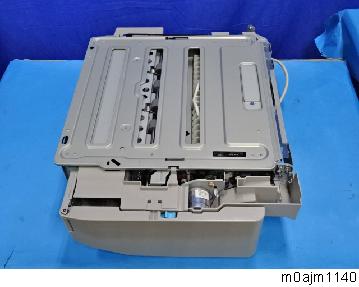

Put the internal multi-fold unit upside down.

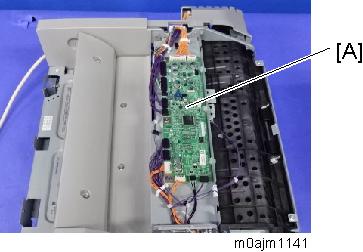

Do not turn over the unit with the top cover removed, as shown in the image below, to avoid damage to the circuit board [A].

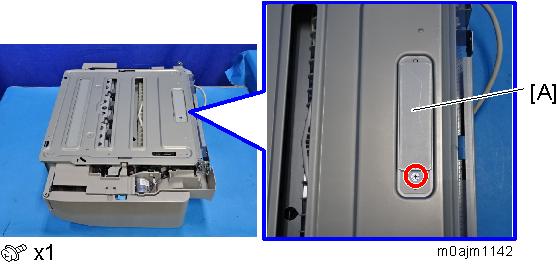

- Remove the horizontal path exit sensor cover [A].

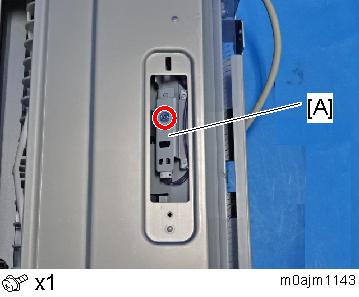

- Remove the horizontal path exit sensor bracket [A].

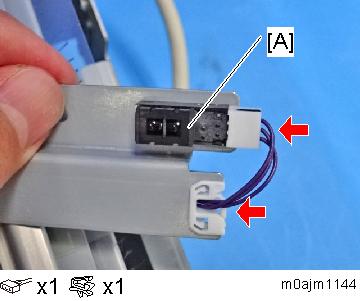

- Remove the horizontal path exit sensor [A].
