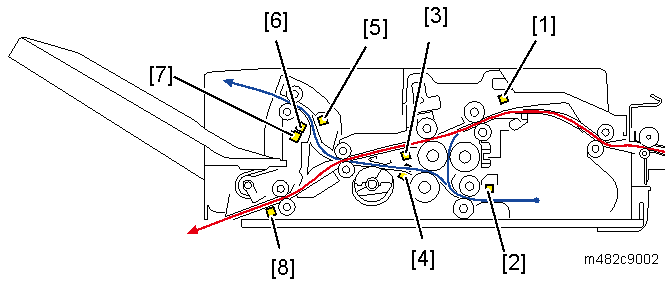

No. | Description | No. | Description |
1 | Registration sensor | 5 | Folder tray exit sensor |
2 | 2nd fold sensor | 6 | Folder tray full sensor 1 |
3 | 1st fold sensor | 7 | Folder tray full sensor 2 |
4 | Crease sensor | 8 | Horizontal path exit sensor |
No. | Description | No. | Description |
1 | Registration sensor | 5 | Folder tray exit sensor |
2 | 2nd fold sensor | 6 | Folder tray full sensor 1 |
3 | 1st fold sensor | 7 | Folder tray full sensor 2 |
4 | Crease sensor | 8 | Horizontal path exit sensor |
