Internal Multi-fold Unit FD3000
Replacement and Adjustment
Exterior Covers
Door

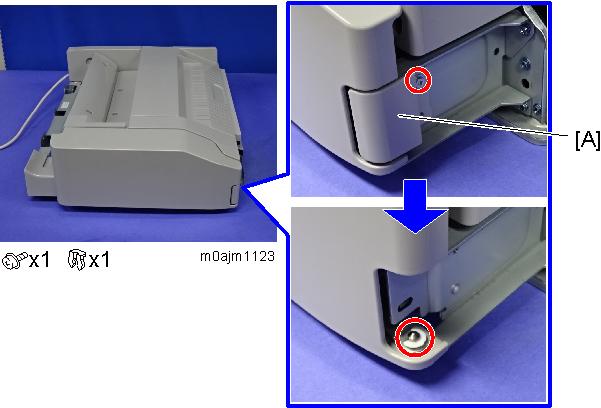

Remove the small cover [A] and clip ring.

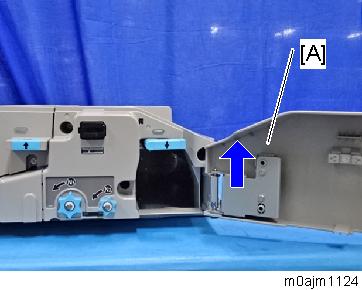

Open the door [A] and remove it by sliding upward.
