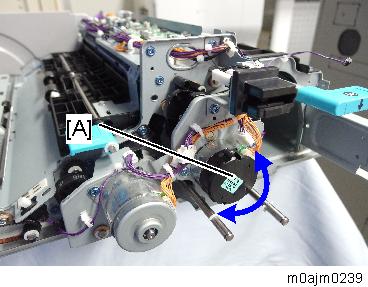

The JG crease motor [A] rotates clockwise/counterclockwise to operate the junction gate / crease roller.

Junction Gate

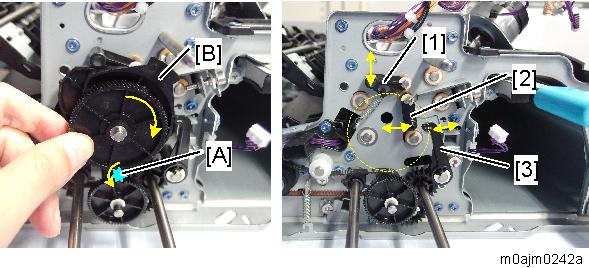

  • When the JG crease motor [A] rotates clockwise, the junction gates 1, 2, and 3 operate.

  • The cam moves the levers 1, 2, and 3 to switch the corresponding junction gates on and off.

    Paper feeding
    		Junction Gate Status
    When feeding paper without folding

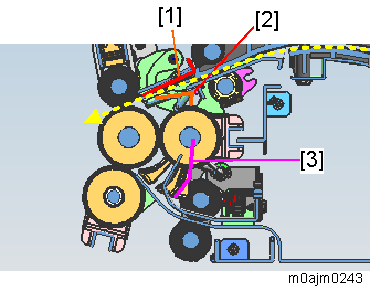

    [1]: Junction Gate 1

    [2]: Junction Gate 2

    [3]: Junction Gate 3

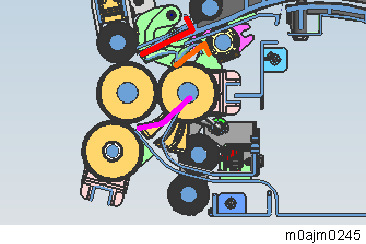

    When entering Folding Roller 1

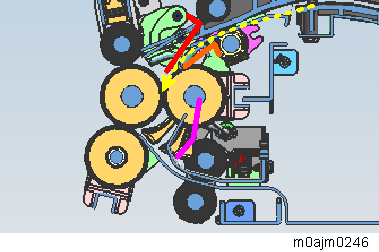

    When adjusting the letter fold position
    When performing half fold

Crease

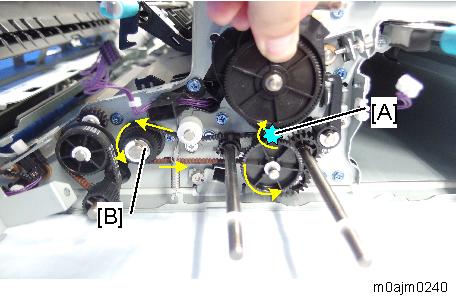

  • When the JG crease motor [A] rotates counterclockwise, the crease motor [B] operates.
