Internal Multi-fold Unit FD3000
Replacement and Adjustment
Sensors
Registration Sensor
Remove the top cover. (
Top Cover
)

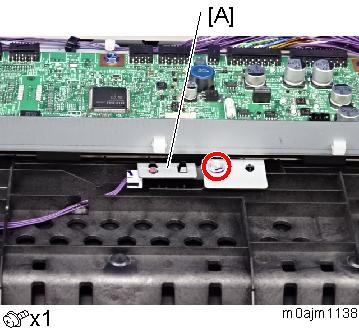

Remove the registration sensor bracket [A].

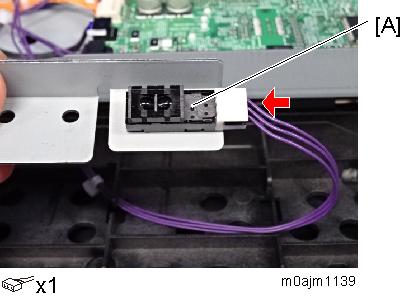

Remove the registration sensor [A].
