Internal Multi-fold Unit FD3000
Replacement and Adjustment
Switches
Front Door Switch
Remove the front right cover. (
Front Right Cover
)

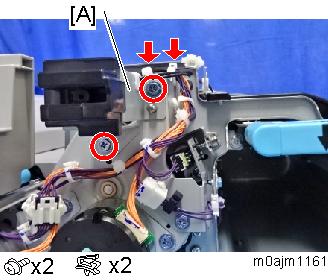

Remove the front door switch bracket [A].

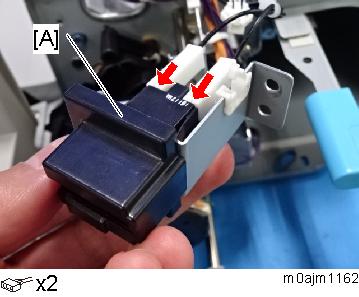

Remove the front door switch [A].
