Internal Multi-fold Unit FD3000
Replacement and Adjustment
Sensors
1st Fold Sensor
Remove the crease sensor bracket. (
Crease Sensor
)

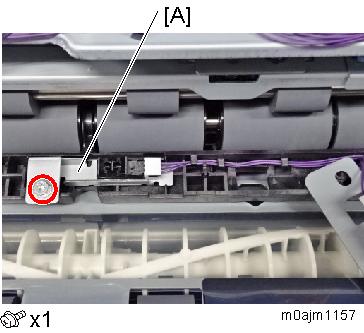

Remove the 1st fold sensor bracket [A].

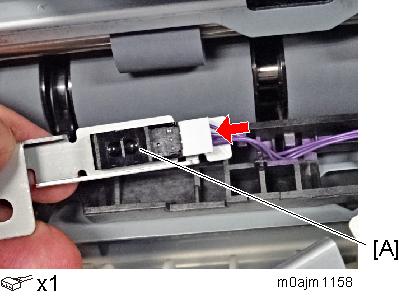

Remove the 1st fold sensor [A].
