Drive and Inverter Mechanism

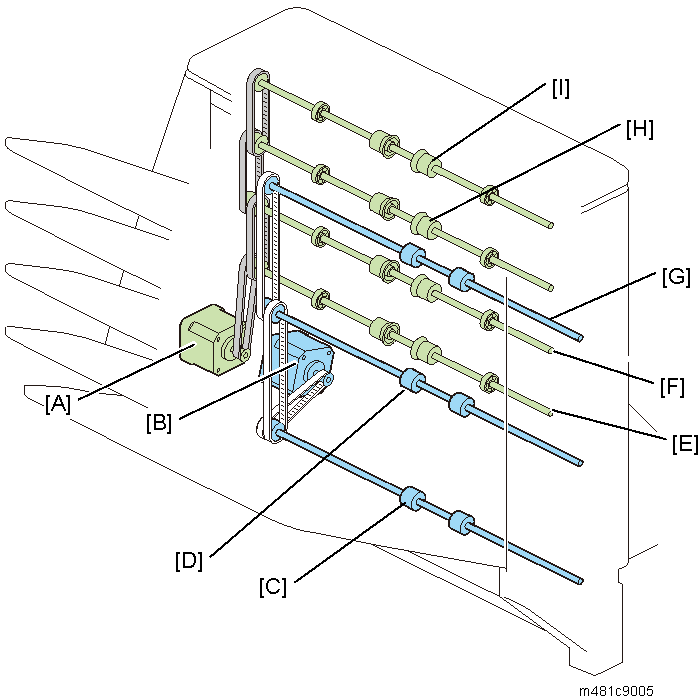

The following rollers are driven by the paper exit motor [A] via a timing belt.

• Paper Exit Roller 1 [E]
• Paper Exit Roller 2 [F]
• Paper Exit Roller 3 [H]
• Paper Exit Roller 4 [I]

The following rollers are driven by the paper transport motor [B] via a timing belt.

• Paper Entrance Roller [C]
• Paper Transport Roller 1 [D]
• Paper Transport Roller 2 [G]

When installing the mailbox, the machine’s inverter guide is removed. Because of this, the mailbox contains an inverter tray in the bottom part.

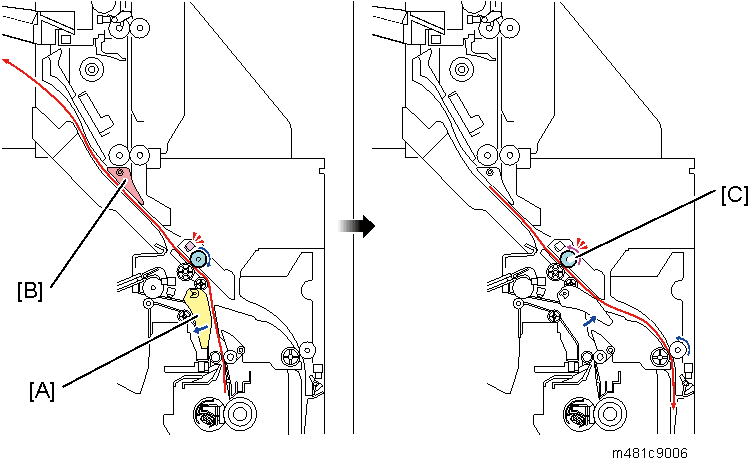

The paper fed to the mailbox via the machine’s junction gate [A] is fed to the inverter tray by the junction gate [B] in the mailbox, and then sent back by the reverse roller [C] and delivered to the duplex unit.
