Paper Exit Driven Rollers 1-4

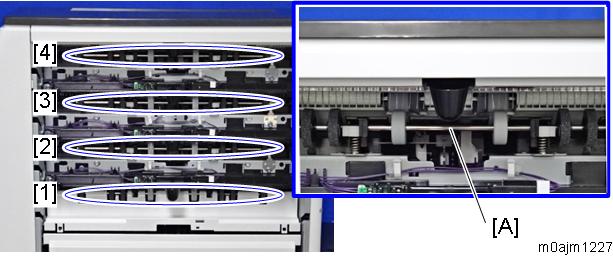

Positions of the paper exit driven rollers 1-4 [A]

1. Remove the paper exit covers 1-4. (Paper Exit Covers 1-4)
2. Remove the paper exit driven roller [A].

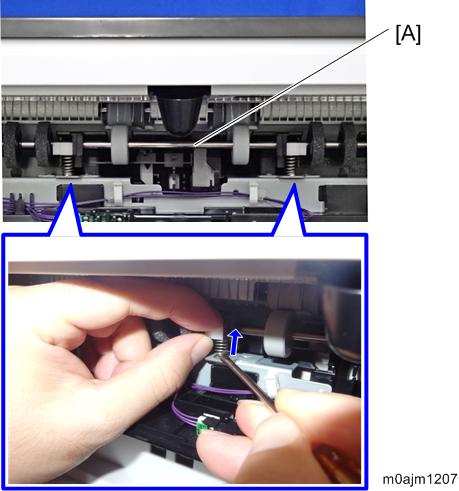

   Push up the right and left springs using a flat-headed screwdriver to remove the paper exit driven roller.

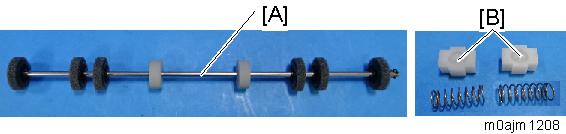

   The paper exit driven roller [A] and the bearings [B] are detached.
