Mail Box CS3010
Replacement and Adjustment
Sensors
Door Sensor
Remove the top cover. (
Top Cover
)

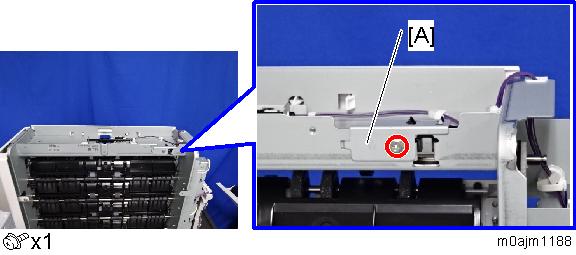

Remove the door sensor bracket [A].

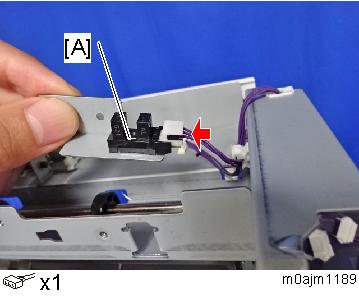

Remove the door sensor [A].
