Mail Box CS3010
Replacement and Adjustment
Motors
Paper Transport Motor
Remove the rear cover. (
Rear Cover
)

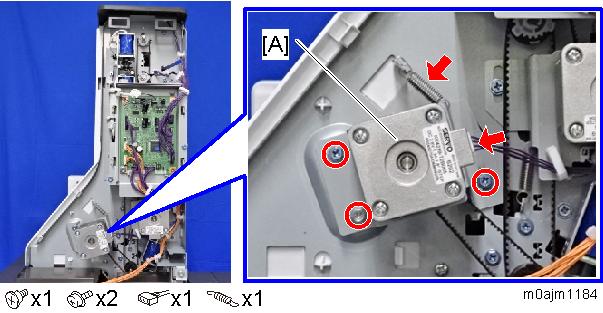

Remove the paper transport motor unit [A].

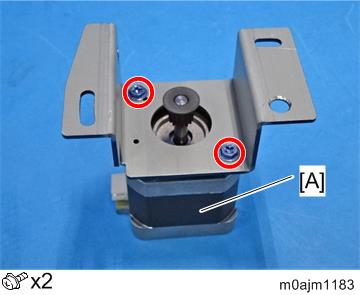

Remove the paper transport motor [A].
