Mail Box CS3010
Replacement and Adjustment
Sensors
Paper Exit Tray Full Sensors 1-3
Remove the paper exit covers 2-4. (
Paper Exit Covers 1-4
)

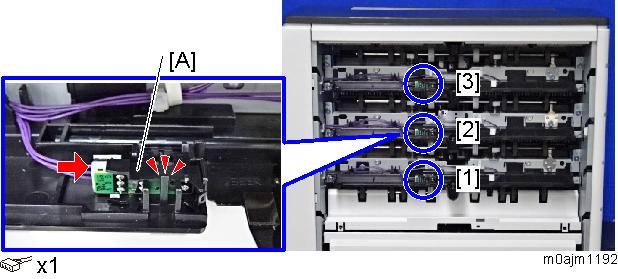

Remove the paper exit tray full sensors 1-3 [A].
