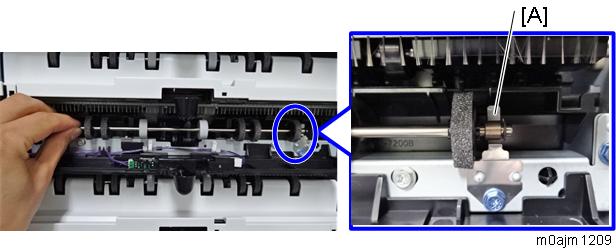

Hold the paper exit driven roller and position the right end of the shaft at the ground plate [A].

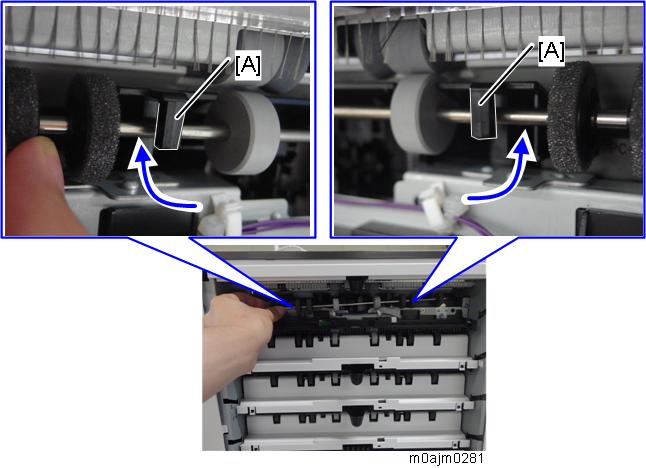

When attaching the roller shaft, pass it through the exterior protrusion [A] and position it as shown below.

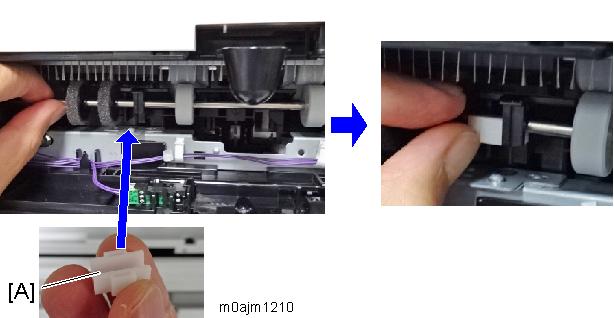

- Mount the bearing [A] on the left-hand mounting position.

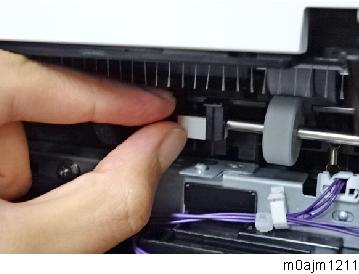

- Keep holding the bearing.

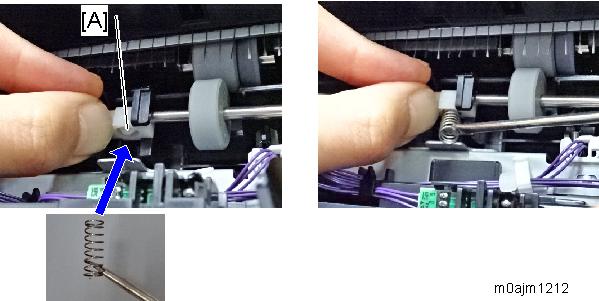

- Push up the end of the spring toward the circular indentation [A] in the bearing, using a flat-headed precision screwdriver.

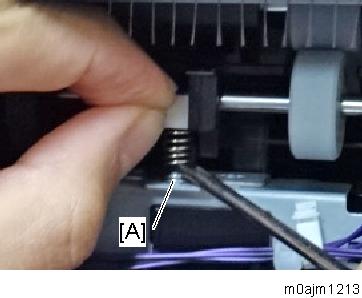

- Push up the spring further, and mount it on the embossed part [A] under the spring.

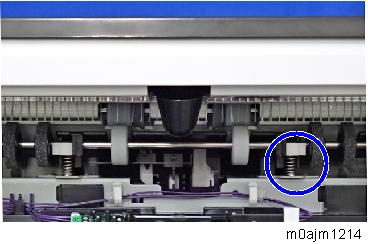

- Mount the right-hand bearing and spring in the same manner.
