Mail Box CS3010
Replacement and Adjustment
Sensors
Paper Exit Tray Full Sensor 4
Remove the top cover. (
Top Cover
)

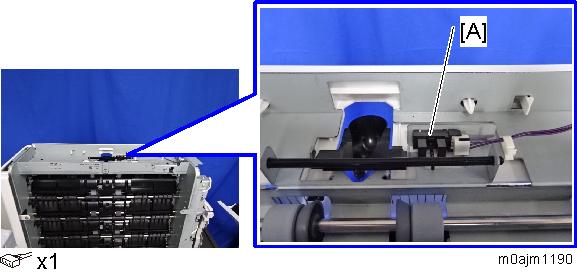

Remove the paper exit tray full sensor 4 [A].
