Mail Box CS3010
Replacement and Adjustment
Sensors
Inverter Guide Door Sensor
Remove the front cover. (
Front Cover
)
Lay down the mailbox.

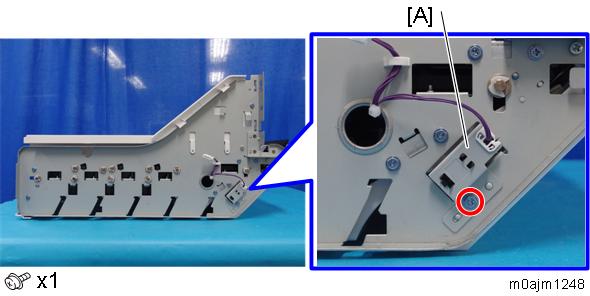

Remove the inverter guide door sensor bracket [A].

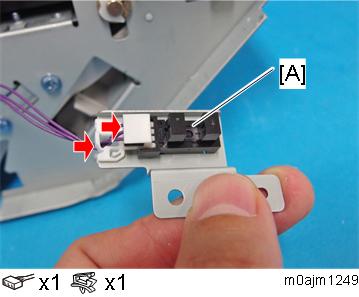

Remove the inverter guide door sensor [A].
