Mail Box CS3010
Replacement and Adjustment
Sensors
Paper Transport Sensors 1, 2
Remove the paper exit covers 1, 3. (
Paper Exit Covers 1-4
)

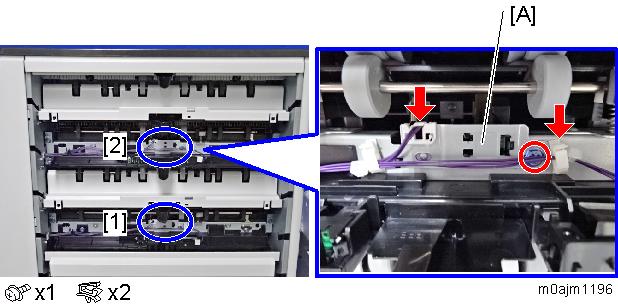

Remove the paper transport sensor bracket [A].

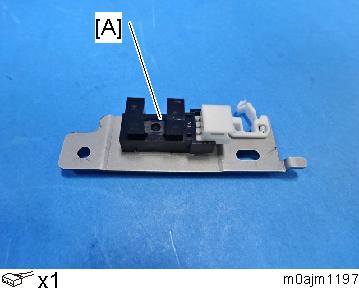

Remove the paper transport sensor [A].
