Mail Box CS3010
Replacement and Adjustment
Motors
Paper Exit Motor
Remove the rear cover. (
Rear Cover
)

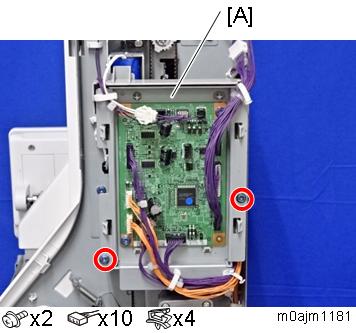

Remove the controller board bracket [A].
Remove the paper exit motor unit [A].

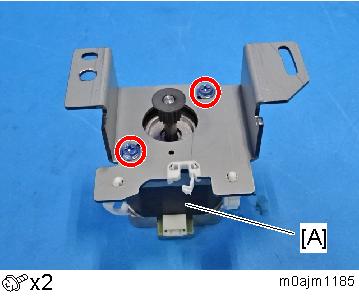

Remove the paper exit motor [A].
