Mail Box CS3010
Replacement and Adjustment
Sensors
Paper Sensors 1-4
Remove the paper exit covers 1-4. (
Paper Exit Covers 1-4
)

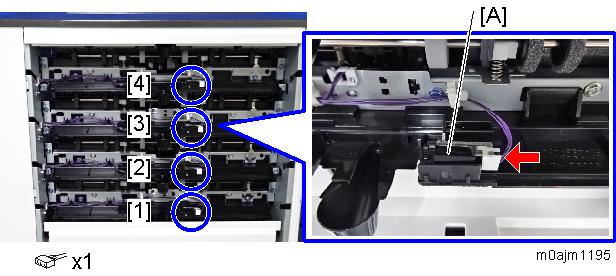

Remove the paper sensors 1-4 [A].
