Mail Box CS3010
Replacement and Adjustment
Solenoids
Inverter Solenoid
Remove the mailbox. (
How to Remove the Mailbox
)

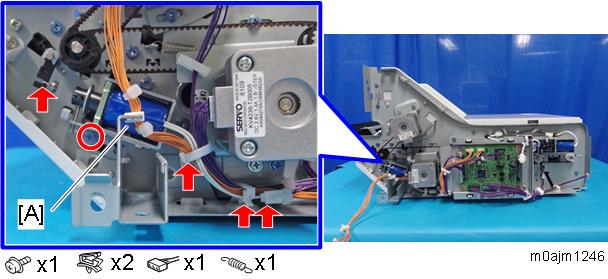

Remove the inverter solenoid unit [A].

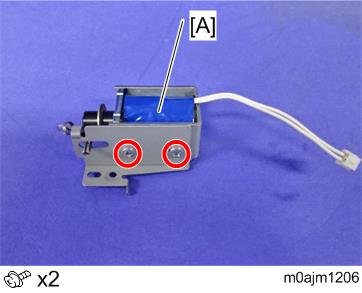

Remove the inverter solenoid [A].
