Roll Away Cart Set Switch

Preparation

Remove these parts:

• Cart (Roll-Away Cart D456)
• Rear lower cover (Rear Lower Cover, Rear Upper Cover)

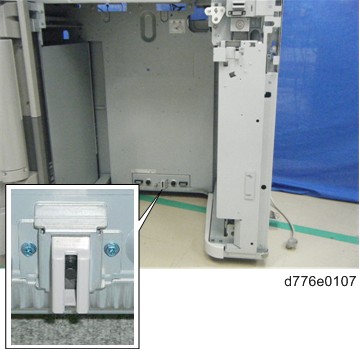

1. At the rear, disconnect the connector [A] (x1).

2. At the inside, remove the switch with the bracket [A] (x2).

3. Depress the hooks on both sides of the switch [A] and separate the switch from the bracket [B].
