High Capacity Stacker SK5040
Replacement and Adjustment
Shift Tray
Paper Jogging
Sub Jogger HP Sensor
Preparation
Jogger unit (
Jogger Unit Removal
)
Disconnect pulley [A] and belt (
x1, Pulley x1, Belt x1).

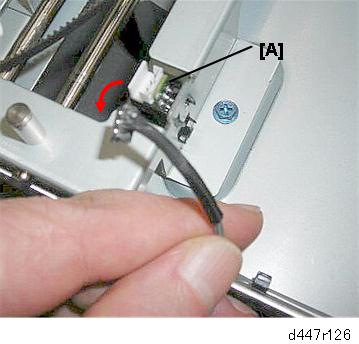

Remove the sub jogger HP sensor [A] (
x1,
x5)
