Transport Sensor

You can see the sensor bracket on the bottom of the transport plate from inside the stacker.

Preparation

• Remove the jogger unit (Jogger Unit Removal)


1. Remove the sensor bracket [A] (x1)

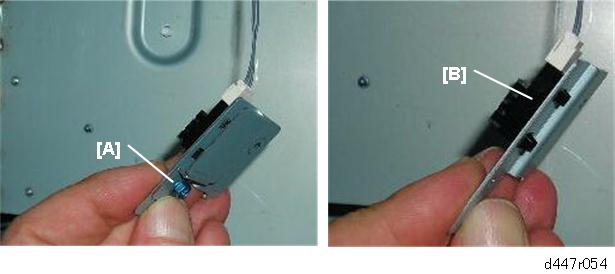

2. Remove the sensor plate [A] (x1)
3. Remove the transport sensor [B] (x1,x4)
