1. Pull out paper tray 1 [A].
  2. Push the right tandem tray [A] into the machine.

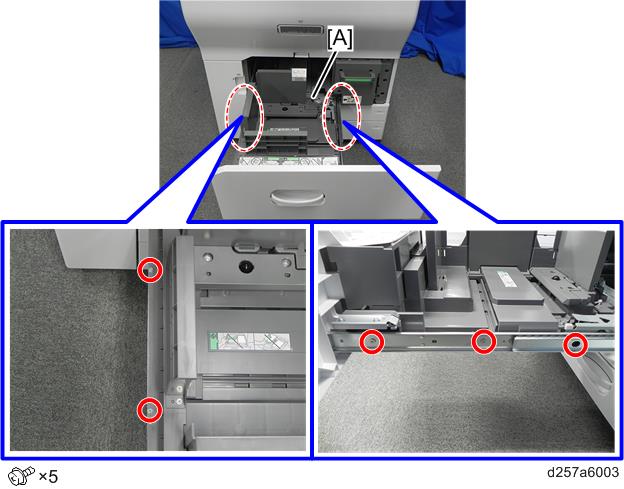

  3. Remove the left tandem tray [A] (M3 x 8; on the left side, shoulder screws; on the right side).
  4. Remove the front cover [A] from the left tandem tray.
  5. Pull out the right tandem tray [A] and remove it.*

    * Pro C5200S/C5210S use TCRU/ORU screws
