Applying Grease after Replacing the Fusing Drive Motor

After replacing the fusing drive unit, apply grease to the motor shaft and joint to prevent abnormal motor noise (Grease: G-1077).

Grease range: whole of the shaft, Grease amount: 0.05g to 0.15g

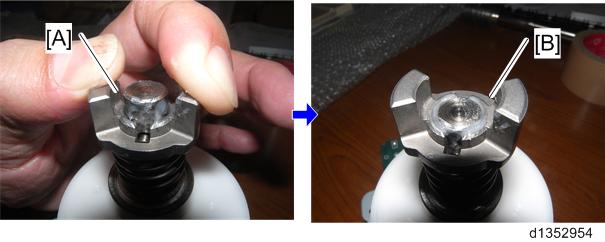

1. Push the joint [A], and apply the grease (G-1077) to the whole of the shaft [B].


2. Put back the joint and turn it to spread the grease evenly.





   • Lower shaft (0.05g): grease applied [A], after turning [B]

   • Upper shaft (0.15g): grease applied [A], after turning [B]
