Installation
Fax Unit Option
Handset (HS1020)
Adjusting the handset receiver volume
Adjust the
handset

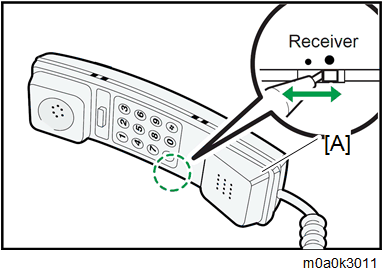

receiver volume using the volume switch.
