• Do not apply strong impact or force to the handset bracket, or it may be damaged.
  • The ferrite core is attached to the handset cord for reducing noise. Do not remove the ferrite core.

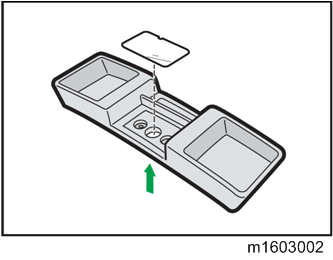

  1. Remove the inquiry card from the handset cradle.

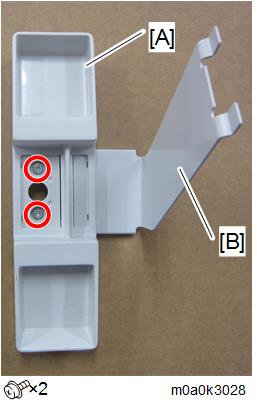

  2. Remove the protective tape from the handset bracket, and fix the handset cradle [A] to the handset bracket [B].
  3. Place the inquiry card back on the handset cradle.

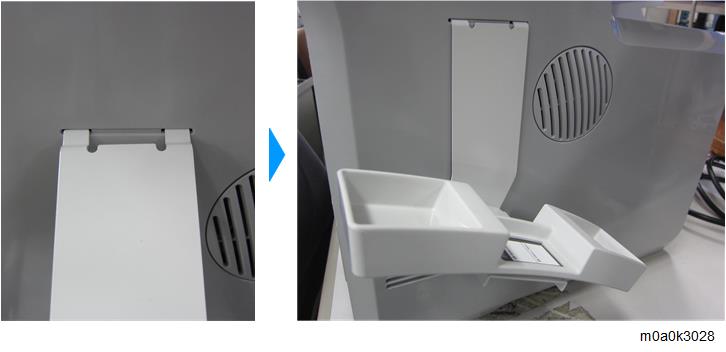

  4. Attach the bracket at the left side of the machine, as shown below.

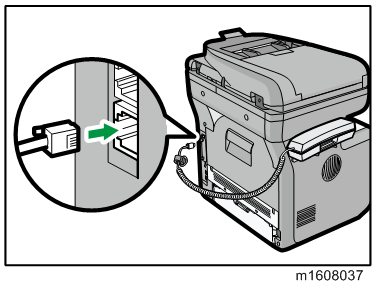

  5. Place the handset on the handset cradle, and connect the handset cord to the TEL socket.
