Installation
Fax Unit Option
Handset (HS1020)
Adjusting the handset bell volume

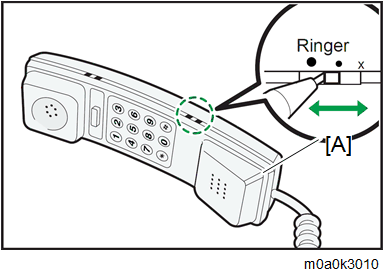

Adjust the handset ringer volume using the volume switch.
