For each stabilizer leg:
Loosen screw [A] (do not remove it) so that the bracket moves freely from side to side.
Do not loosen the other screw!

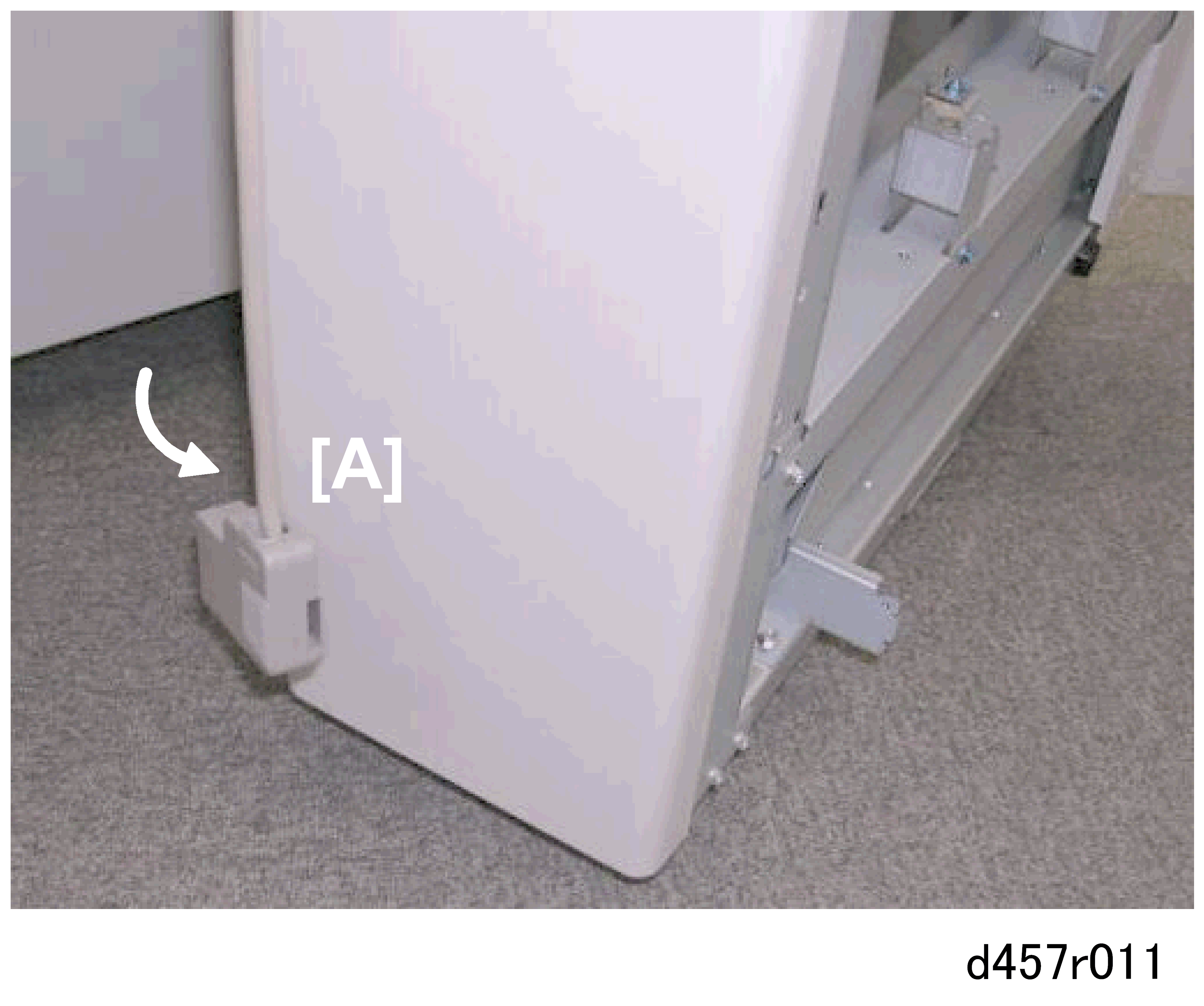

Pull the right rear corner [A] of the De-curl Unit a short distance away from the main machine.
Set one stabilizer leg [A] under the rear left side, with the bracket [B] aligned with hole [C].
On the right side:
Align the stabilizer leg [A] with the hole.
Hook the stabilizer leg onto the frame with the holes aligned.
Use a knob screw [B] to fasten the stabilizer leg.
On the left side:
Attach knob screw [A]
Tighten screw [B]
Pull the right front corner [A] of the De-curl Unit a short distance away from the main machine.
Do Steps 3 to 5 to attach the other stabilizer leg to the right side of the unit.
The De-curl Unit can now be moved safely for servicing.
