1. Remove the paper exit tray. (Paper Exit Tray (IM 550F/600F))

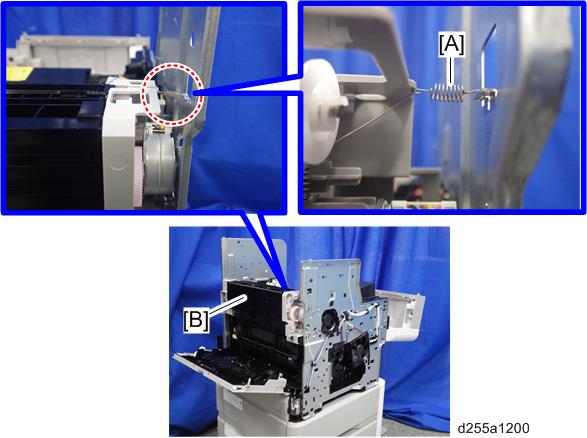

  2. Remove the spring [A] from the right side of the paper exit unit [B].

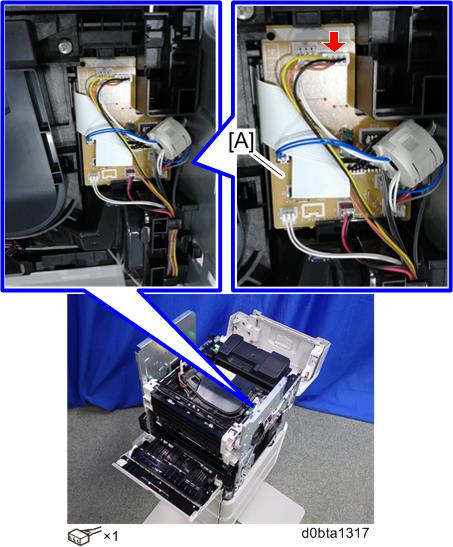

  3. Disconnect the connector from the Connect-Left PCB (PCB20) [A].

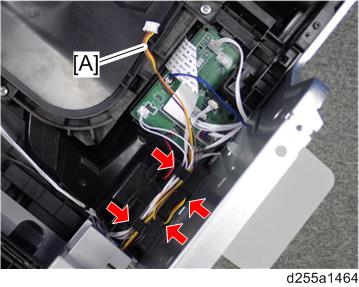

  4. Release the harness [A] from the harness guides.

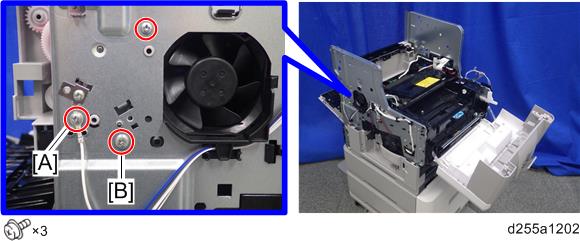

  5. Remove the three screws from the left side of the machine.

    • The screw [A] is a ground screw and [B] is a big screw. Be careful not to use the wrong screws when installing the paper exit unit.

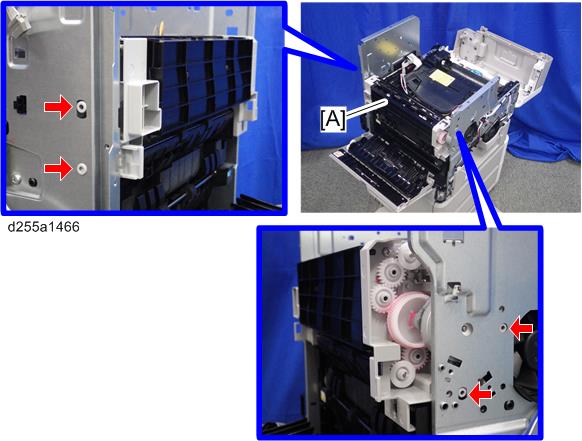

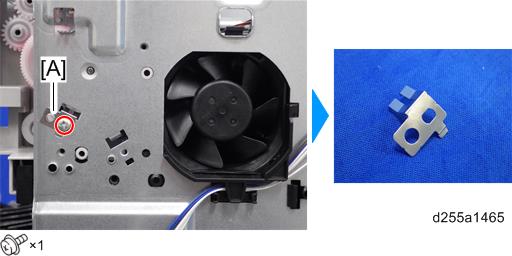

  6. Remove the bracket [A].

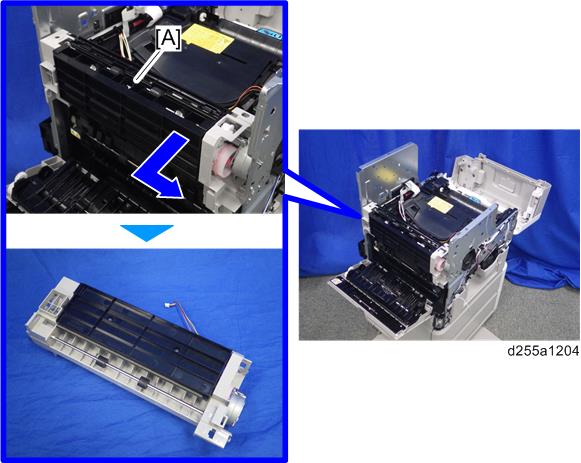

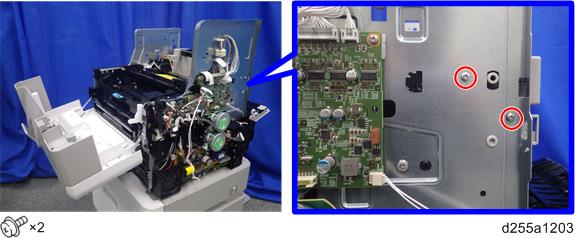

  7. Remove the two screws from the right side of the machine.

  8. Remove the paper exit unit [A].

    • When removing the paper exit unit [A], release the four hooks from both sides of the paper exit unit.
    • When removing the paper exit unit [A], disconnect the connector [B] from the paper exit unit.
