IM 550F/600F/600SRFP 800/801

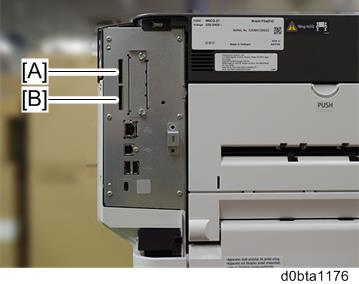

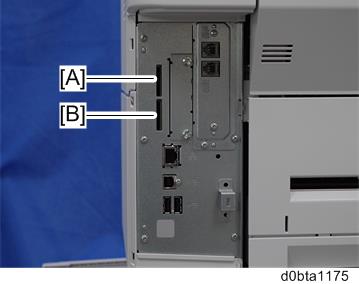

Slots

Description

[A]

SD Card Slot 1 (option slot)

Use for the following SD card options.

  • PostScript3 Unit Type M40*1
  • PostScript3 Unit Type P19*2
  • OCR Unit Type M13*1
  • IPDS Unit Type M40
  • XPS Direct Print Option Type M40
  • VM Card Type M37
  • Fax Connection Unit Type M37*1
  • DataOverwriteSecurity Unit Type M19*1

[B]

SD Card Slot 2 (service slot)

Use for service only (for example, updating the firmware).

*1 IM 550F/600F/600SRF only

*2 P 800/801 only

  • Optional SD cards can be set in either Slot 1 or Slot 2. However, Slot 2 is the service slot, so it is recommended that Slot 1 to be used to install the SD card options.
