When you replace the Fax modular cable, attach the ferrite core with the following procedure.

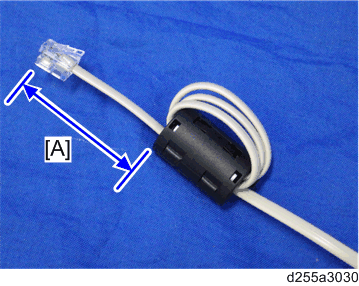

  1. Make three loops 5 cm (2.0 inches) [A] from the end of the modular cable (connection side to the machine) and attach the ferrite core to the loops as shown.

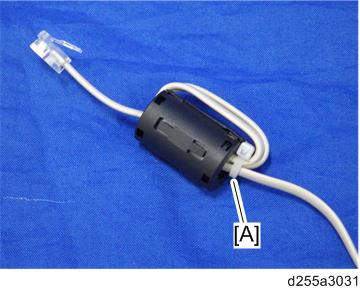

  2. Fix the modular cable with the bind [A] as shown below.
