- Before starting this procedure, connect the network cable to the target machine(s), and then configure the network settings.
- When installing more than one SD card, perform the merge operation. For details about how to merge, refer to "SD Card Appli Move" in "Main Chapters" of the field service manual.
- Turn OFF the main power.
- Open the rear upper cover [A].
- Insert a flathead screwdriver into [A] to release a hook of the controller cover [B].
Release the hook by opening the right side of the cover, and then remove the cover [A] by rotating it in the direction of the blue arrow.
- Be careful not to damage the hooks at the rear of the controller cover when you remove or install the controller cover.
- Be careful not to damage the hooks at the rear of the controller cover when you remove or install the controller cover.

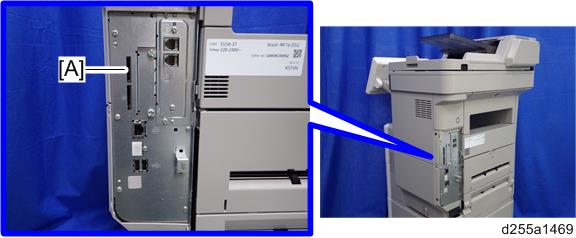

- Insert the Fax Connection Unit Type M24 SD card into SD card slot 1 [A] (upper slot).
- Reassemble the machine.
- Turn ON the main power.
- Press [Firmware Version] in the [Administrator Tools].
- [User Tools] > [Machine Features] > [System Settings] > [Administrator Tools]
- Check whether the aics version is displayed.
