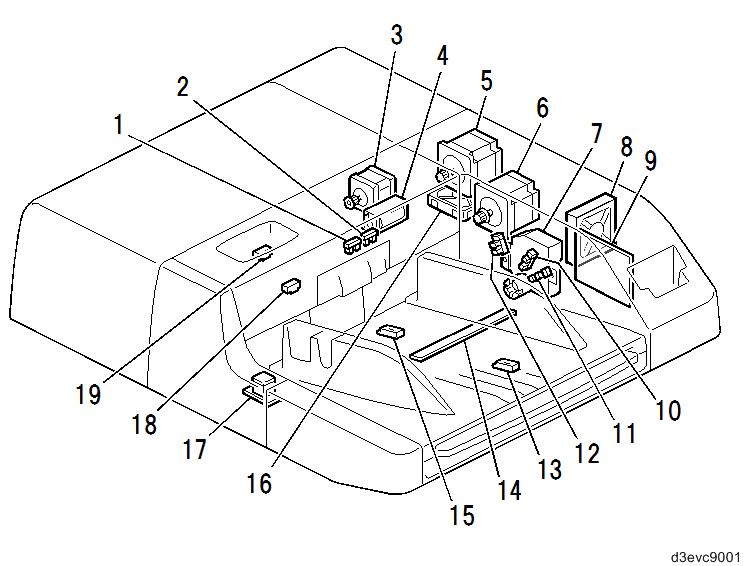

Item | Details | Item | Details |
|---|---|---|---|
1 | Tray Upper Limit Sensor 1 | 11 | Paper Height Sensor 2 |
2 | Tray Upper Limit Sensor 2 | 12 | Tray Lower Limit Sensor |
3 | Relay Motor | 13 | Paper Length Sensor |
4 | Pick-up Solenoid | 14 | Paper Width Switch |
5 | Transport Motor | 15 | Paper End Sensor |
6 | Paper Feed Motor | 16 | Cooling Fan for Transport Motor |
7 | Tray Lift Motor | 17 | Tray Lift Switch |
| 8 | Cooling Fan for Feed Motor | 18 | Paper Feed Sensor |
| 9 | PCB | 19 | Relay Sensor |
| 10 | Paper Height Sensor 1 |
