Paper Feed Unit PB1130
Replacement and Adjustment
Paper Tray Board
Remove the right cover (
Right Cover
).

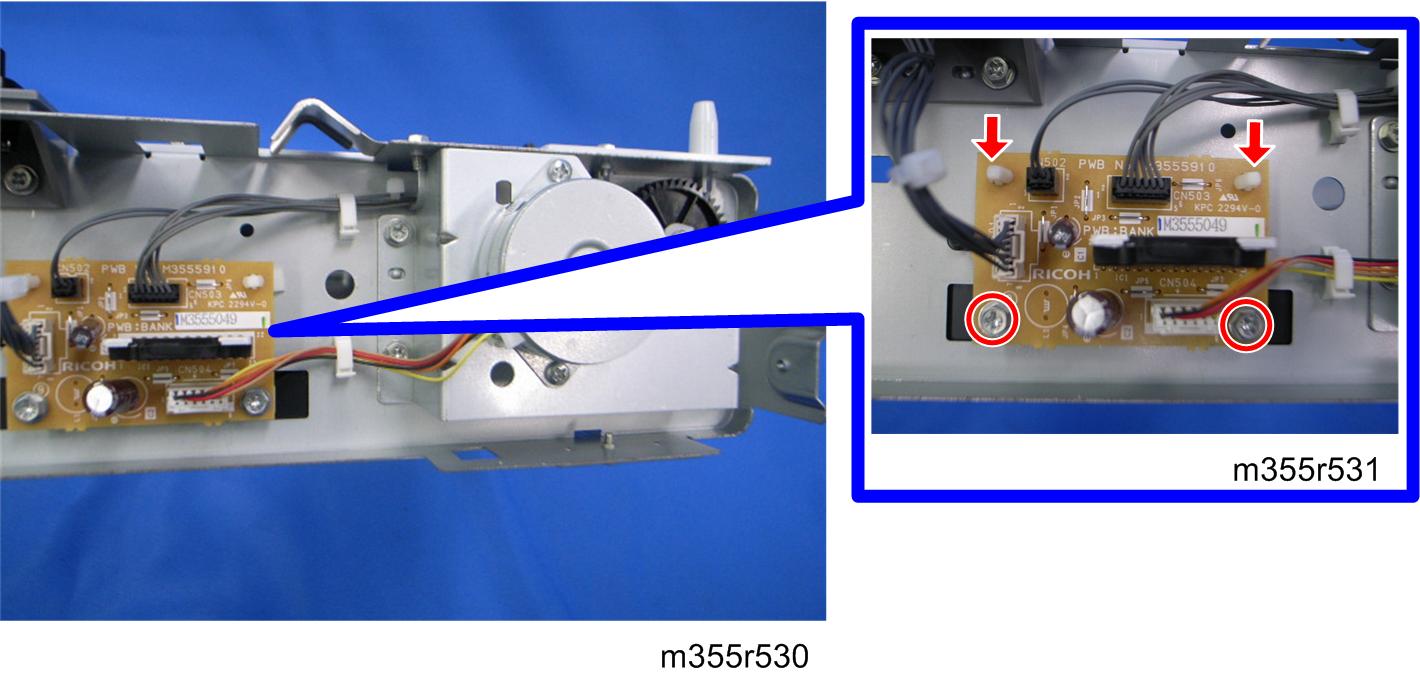

Remove the paper tray board (
x2, locking support x2,
x 4).
