Paper Feed Unit PB1130
Replacement and Adjustment
Paper Feed Motor and Gears
Paper Feed Motor
Remove the right cover (
Right Cover
).

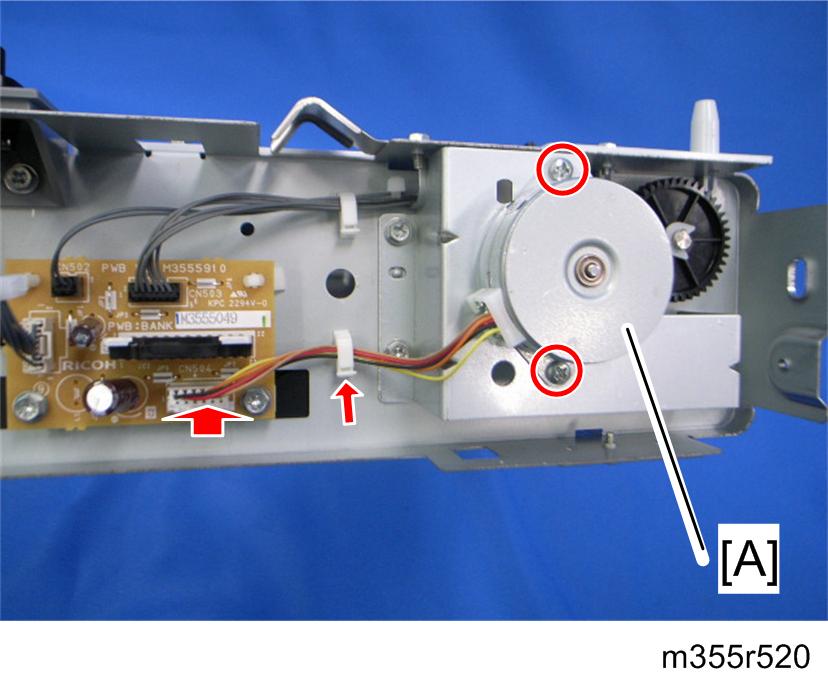

Remove the paper feed motor [A] (
x2,
x1,
x1).
