Paper Feed Unit PB1130
Replacement and Adjustment
Paper Feed Motor and Gears
Paper Feed Gears
Remove the right cover (
Right Cover
).

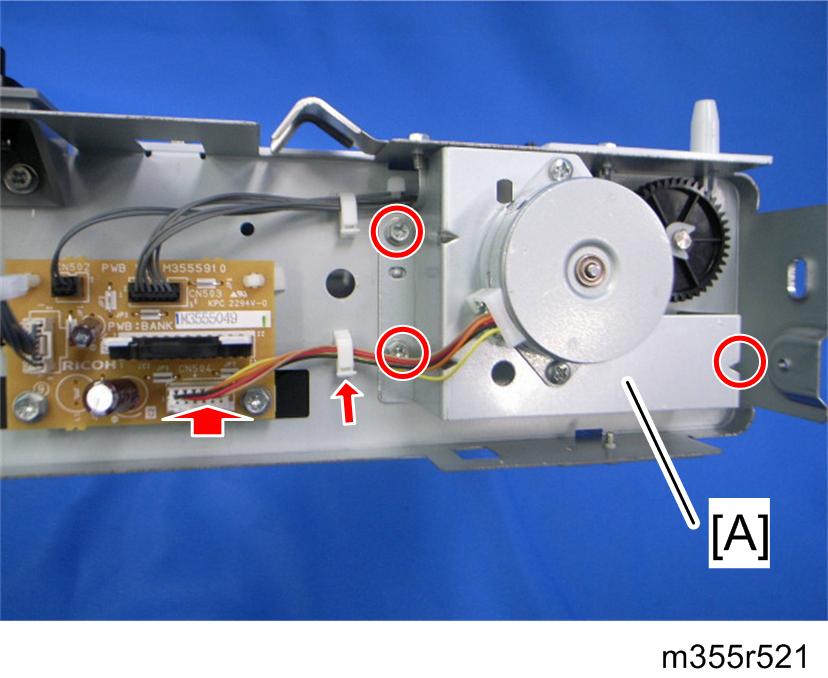

Remove the paper feed motor bracket [A] (
x3,
x1,
x1).

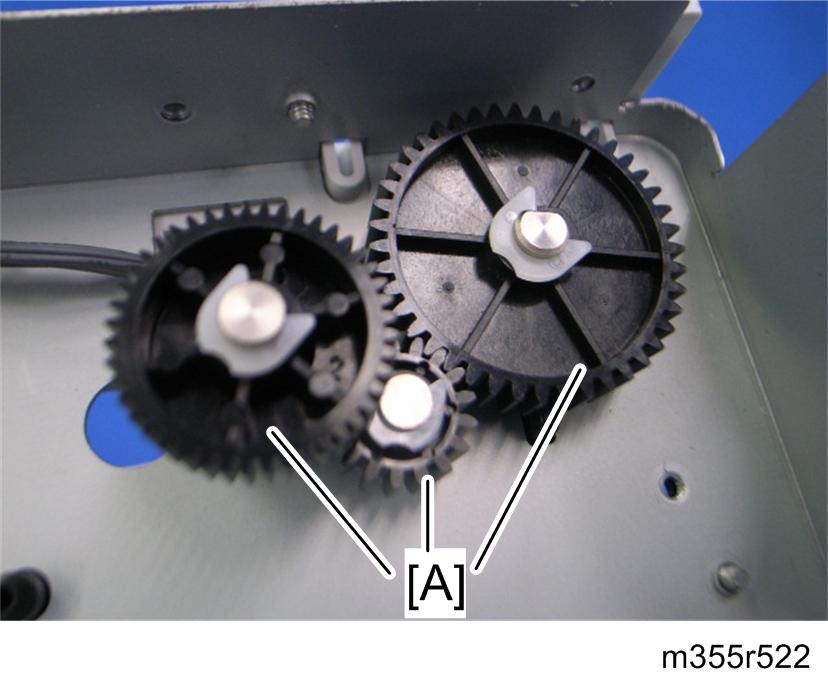

Remove the paper feed gears [A] (each C-ring x1).
