Paper Feed Unit PB1130
Replacement and Adjustment
External Covers and Paper Feed Unit
Right Cover
Remove the rear cover (
Rear Cover
).

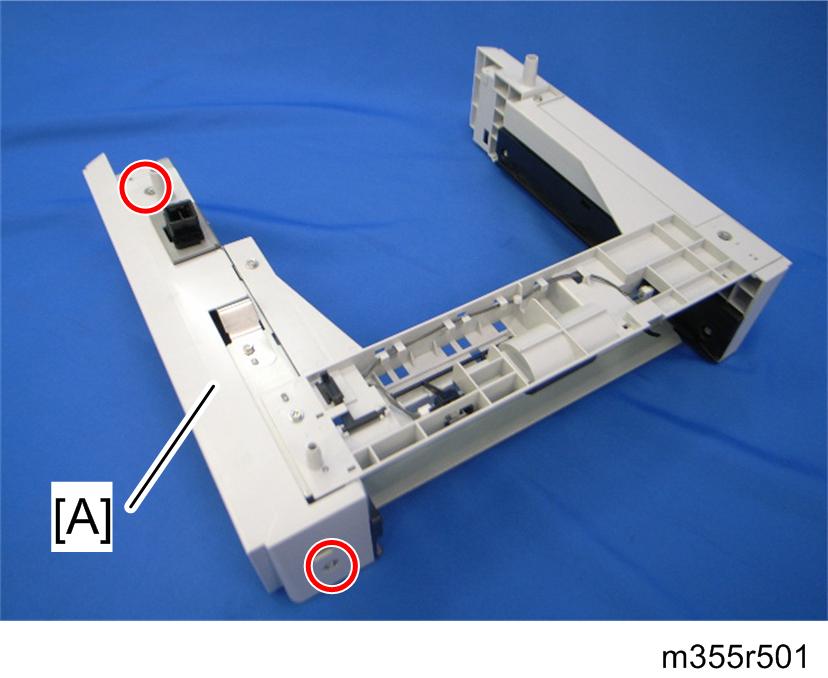

Remove the right cover [A] (
x2).
