Mechanism
Overview

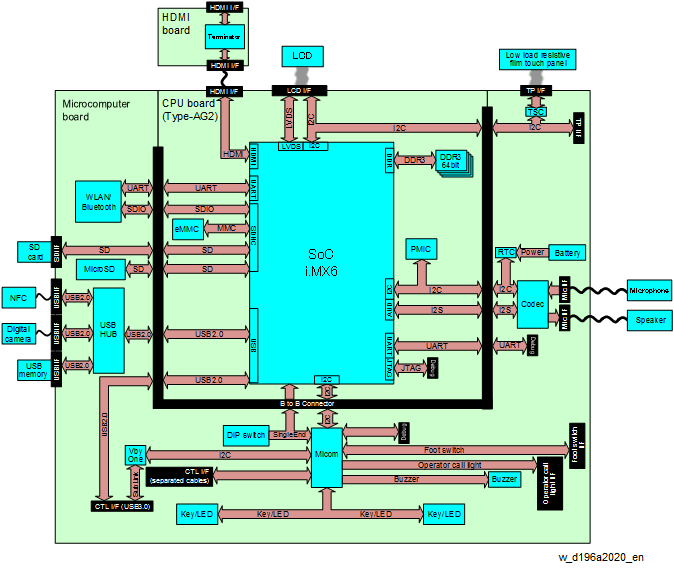

Electrical Components
The CPU board has a CPU, memory, and a flash drive.
The Microcomputer board has various interfaces, Wi-Fi module and other devices.
