Replacement and Adjustment
Paper Feed Unit PB1060 (250 sheets) / PB1070 (500 sheets)
Paper Size Switch
Paper Feed Tray (
Paper Feed Tray
)
Right Cover (
Exterior
)

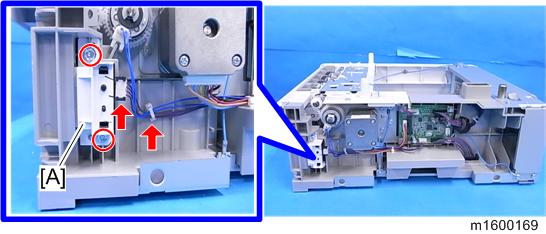

Bracket [A] with paper size switch (
x2,
x1,
x1)

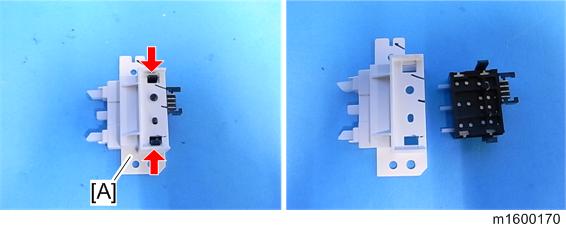

Detach the paper size switch from the bracket [A]. (Hook x2)
