Replacement and Adjustment
Paper Feed Unit PB1060 (250 sheets) / PB1070 (500 sheets)
Paper Feed Roller
Paper Feed Tray (
Paper Feed Tray
)

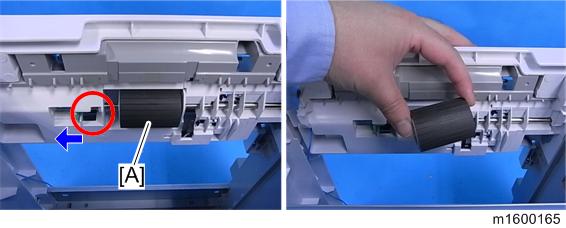

Release the lever to the left as shown below to remove the paper feed roller [A].
