Replacement and Adjustment
Paper Feed Unit PB1060 (250 sheets) / PB1070 (500 sheets)
Exterior

Right Cover PB1060 (250 Sheets)

Paper Feed Tray (Paper Feed Tray)

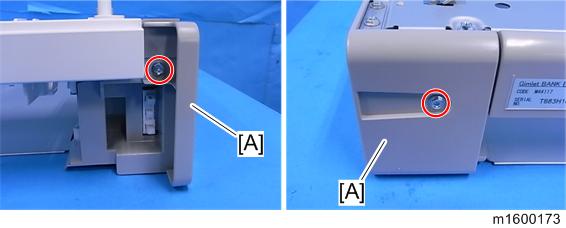

Right Cover [A] (x2, Tab)

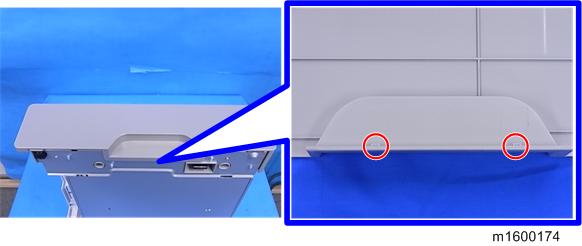

Be sure to release two tabs on the bottom of (and behind) the right cover while trying to remove it.
