Replacement and Adjustment
Paper Feed Unit PB1060 (250 sheets) / PB1070 (500 sheets)
Paper Feed Motor
Paper Feed Clutch (
Paper Feed Clutch
)

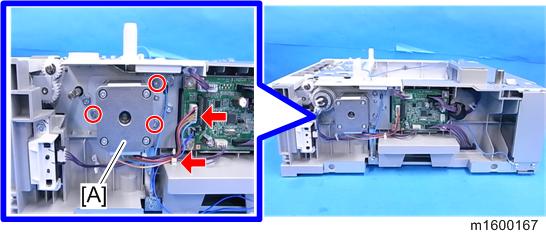

Bracket [A] with Paper Feed Motor (
x3,
x1,
x1)
Detach the paper feed motor [B] from the bracket [A]. (
x2)
