Replacement and Adjustment
SPDF
SPDF Original Tray
Remove the SPDF front cover. (
SPDF Front Cover
)
Remove the SPDF rear cover. (
SPDF Rear Cover
)

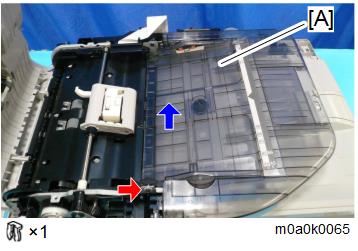

Slide the SPDF original tray [A] to remove it.
