Replacement and Adjustment
Paper Transport
Paper Exit Sensor
Open the rear cover.

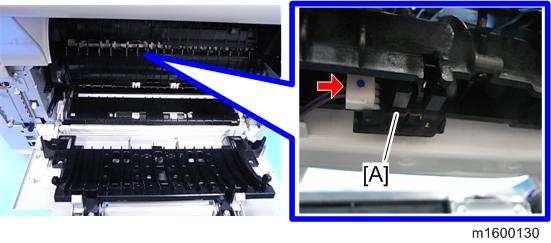

Remove the paper exit sensor [A]. (
x1, Hook)
