1. Open the front door.

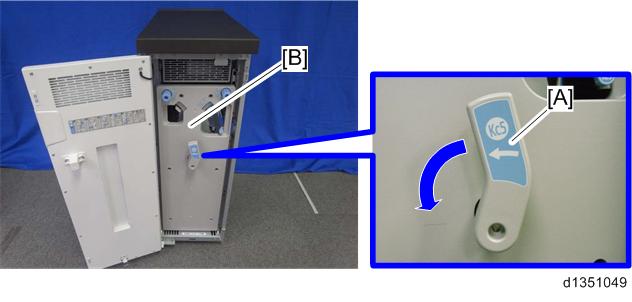

  2. Turn the Kc5 handle [A] counter-clockwise, and then pull out the paper path unit [B].

    • When you pull out the paper path unit, take care that the buffer pass unit does not fall down to the front. This is because the paper path unit is heavier than the buffer pass unit.

  3. Left cover (Left Cover)
  4. Lower cooling fan cover [A]. ( x 2)
  5. Lower cooling fans 1, 2 [A] ( x 2 each, x 2, x 2)

  • Make sure that the decals on the fans face downward when reinstalling the lower cooling fans.
