There are two transport motor units (right and left). Both removal procedures are identical.

  1. Rear cover (Rear Cover)
  2. Controller board bracket (Controller Board)

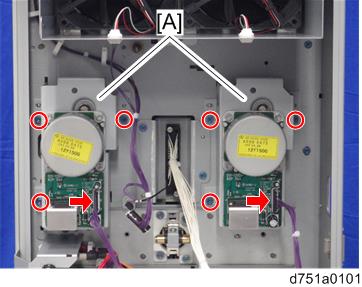

  3. Transport Motor Unit [A] ( x 3, x1 for each unit)
