1. Open the front door.
  2. Remove the two screws and the bracket [A] ( x 2).

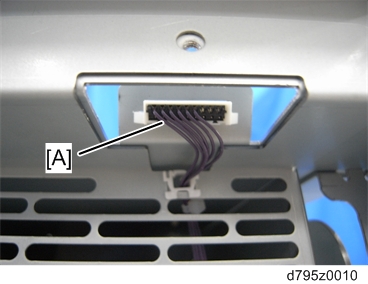

  3. Disconnect the harness [A] ( x 1).

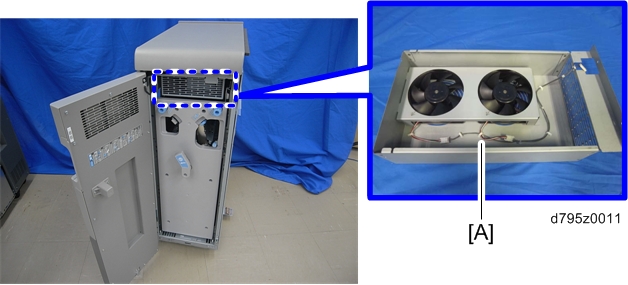

  4. Remove the upper cooling fan unit [A].
  5. Remove the upper cooling fan bracket [A] (x 1,x 2,x 2).
  6. Remove the upper cooling fans [A] ( x 2 each).

  • When reinstalling the upper cooling fans, make sure that the decals on the fans face downward.
  • When reinstalling the upper cooling fan unit, set the left and right guides of the upper cooling fan unit into the cutouts in the buffer pass unit as shown below.
