Fusing Thermistor Connection PCB

Remove the following covers.

• MP 501/601: Paper exit tray (Paper Exit Tray)

• SP 5300/5310: Upper cover (Upper Cover)

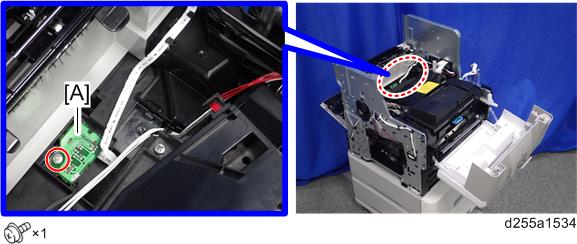

Remove the screw which is fixing the fusing thermistor connection PCB [A].

Turn over the fusing thermistor connection PCB [A], and then disconnect the flat cable and connectors.
